2026-03-11 组会：关于隐藏服务XON/XOFF机制确认与实验方案

Client->RP<-HS链路结构确认

7-hop & 6-node

经过确认，虽然Tor Proposal中写的是HS->RP为三跳电路，但是在实际代码实现当中是

HS -> Guard -> Middle1 -> Middle2 -> RP

因此Client->RP<-HS链路的完整结构应当为：

Client -> C Guard -> C Middle -> RP <- S Middle2 <- S Middle1 <- S Guard <- HS

依据

在最新的Tor源码实现中提到：

// circuitbuild.c

/** Helper for new_route_len().  Choose a circuit length for purpose
 * <b>purpose</b>: DEFAULT_ROUTE_LEN (+ 1 if someone else chose the
 * exit).  If someone else chose the exit, they could be colluding
 * with the exit, so add a randomly selected node to preserve
 * anonymity.
 *
 * Here, "exit node" sometimes means an OR acting as an internal
 * endpoint, rather than as a relay to an external endpoint.  This
 * means there need to be at least DEFAULT_ROUTE_LEN routers between
 * us and the internal endpoint to preserve the same anonymity
 * properties that we would get when connecting to an external
 * endpoint.  These internal endpoints can include:
 *
 *   - Connections to a directory of hidden services
 *     (CIRCUIT_PURPOSE_C_GENERAL)
 *
 *   - A client connecting to an introduction point, which the hidden
 *     service picked (CIRCUIT_PURPOSE_C_INTRODUCING, via
 *     circuit_get_open_circ_or_launch() which rewrites it from
 *     CIRCUIT_PURPOSE_C_INTRODUCE_ACK_WAIT)
 *
 *   - A hidden service connecting to a rendezvous point, which the
 *     client picked (CIRCUIT_PURPOSE_S_CONNECT_REND.
 *
 * There are currently two situations where we picked the exit node
 * ourselves, making DEFAULT_ROUTE_LEN a safe circuit length:
 *
 *   - We are a hidden service connecting to an introduction point
 *     (CIRCUIT_PURPOSE_S_ESTABLISH_INTRO).
 *
 *   - We are a router testing its own reachabiity
 *     (CIRCUIT_PURPOSE_TESTING, via router_do_reachability_checks())
 *
 * onion_pick_cpath_exit() bypasses us (by not calling
 * new_route_len()) in the one-hop tunnel case, so we don't need to
 * handle that.
 */

对于一些exit不是由隐藏服务端选择的时候，会选择额外加一跳来保证匿名性。这种情况包括了：

1. Client连接HSDir
2. Client连接INTRODUCING
3. HS连接RP

因此HS到RP应当是4-hop。

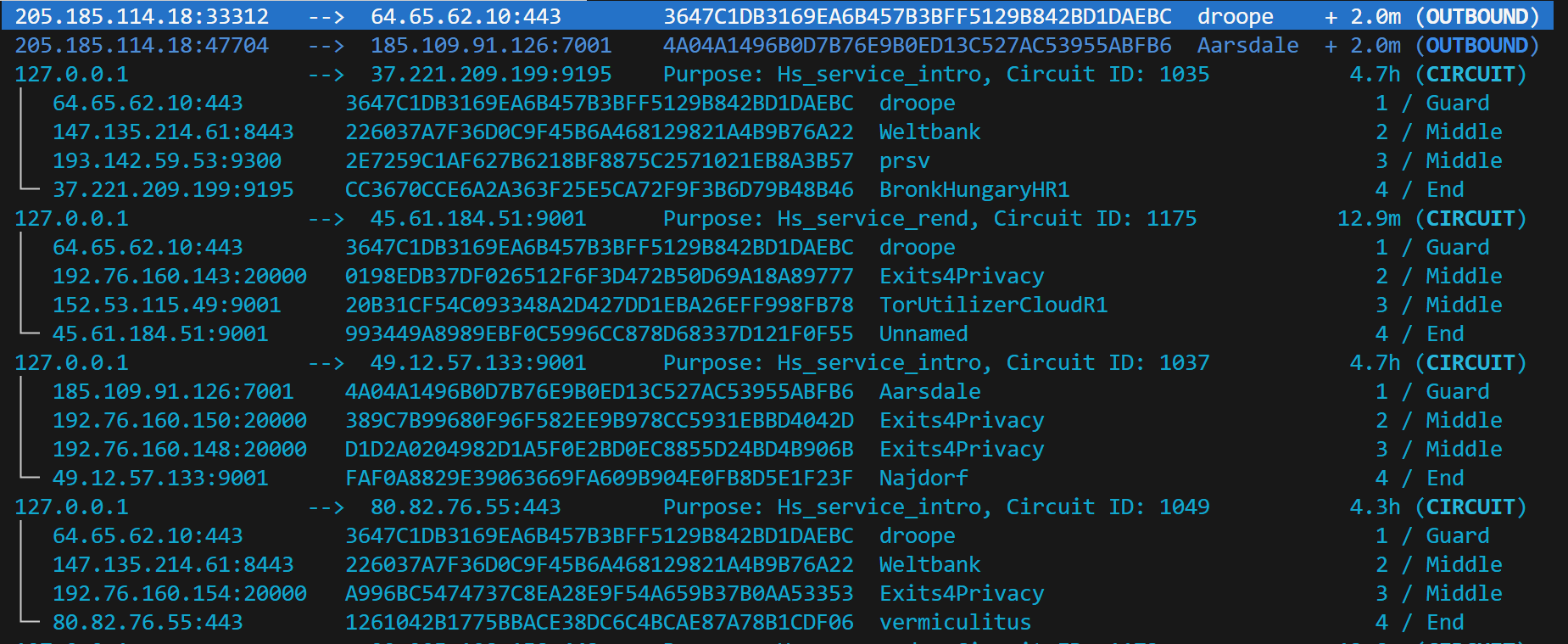

另一方面，从实际的隐藏服务的节点上通过nyx进行监控，可以看到PURPOSE为HS_service_intro和HS_service_rend的电路都是4-hop。

XON/XOFF处理位置

结论

在Client和HS的连接当中，XON/XOFF不会在RP的位置被处理，而是被RP转发给HS，由HS进行处理。

依据

在最新的Tor源代码当中：

// relay.c

/** Receive a relay cell:
 *  - Crypt it (encrypt if headed toward the origin or if we <b>are</b> the
 *    origin; decrypt if we're headed toward the exit).
 *  - Check if recognized (if exitward).
 *  - If recognized and the digest checks out, then find if there's a stream
 *    that the cell is intended for, and deliver it to the right
 *    connection_edge.
 *  - If not recognized, then we need to relay it: append it to the appropriate
 *    cell_queue on <b>circ</b>.
 *
 * Return -<b>reason</b> on failure, else 0.
 */
int
circuit_receive_relay_cell(cell_t *cell, circuit_t *circ,
                           cell_direction_t cell_direction)
{
  channel_t *chan = NULL;
  crypt_path_t *layer_hint=NULL;
  char recognized=0;
  int reason;

  tor_assert(cell);
  tor_assert(circ);
  tor_assert(cell_direction == CELL_DIRECTION_OUT ||
             cell_direction == CELL_DIRECTION_IN);
  if (circ->marked_for_close)
    return 0;

  if (relay_decrypt_cell(circ, cell, cell_direction, &layer_hint, &recognized)
      < 0) {
    log_fn(LOG_PROTOCOL_WARN, LD_PROTOCOL,
           "relay crypt failed. Dropping connection.");
    return -END_CIRC_REASON_INTERNAL;
  }

  circuit_update_channel_usage(circ, cell);

  if (recognized) {
    edge_connection_t *conn = NULL;
    relay_cell_fmt_t format = circuit_get_relay_format(circ, layer_hint);

    relay_msg_t msg_buf;
    if (relay_msg_decode_cell_in_place(format, cell, &msg_buf) < 0) {
      log_fn(LOG_PROTOCOL_WARN, LD_PROTOCOL,
             "Received undecodable relay cell");
      return -END_CIRC_REASON_TORPROTOCOL;
    }
    const relay_msg_t *msg = &msg_buf;

    if (circ->purpose == CIRCUIT_PURPOSE_PATH_BIAS_TESTING) {
      if (pathbias_check_probe_response(circ, msg) == -1) {
        pathbias_count_valid_cells(circ, msg);
      }

      /* We need to drop this cell no matter what to avoid code that expects
       * a certain purpose (such as the hidserv code). */
      return 0;
    }

    conn = relay_lookup_conn(circ, msg, cell_direction, layer_hint);
    if (cell_direction == CELL_DIRECTION_OUT) {
      ++stats_n_relay_cells_delivered;
      log_debug(LD_OR,"Sending away from origin.");
      reason = connection_edge_process_relay_cell(msg, circ, conn, NULL);
      if (reason < 0) {
        log_fn(LOG_PROTOCOL_WARN, LD_PROTOCOL,
               "connection_edge_process_relay_cell (away from origin) "
               "failed.");
        return reason;
      }
    } else if (cell_direction == CELL_DIRECTION_IN) {
      ++stats_n_relay_cells_delivered;
      log_debug(LD_OR,"Sending to origin.");
      reason = connection_edge_process_relay_cell(msg, circ, conn,
                                                  layer_hint);
      if (reason < 0) {
        /* If a client is trying to connect to unknown hidden service port,
         * END_CIRC_AT_ORIGIN is sent back so we can then close the circuit.
         * Do not log warn as this is an expected behavior for a service. */
        if (reason != END_CIRC_AT_ORIGIN) {
          log_warn(LD_OR,
                   "connection_edge_process_relay_cell (at origin) failed.");
        }
        return reason;
      }
    }
    return 0;
  }

当节点收到一个cell的时候，先检查是否recognized，如果recognized，那么找到对应的stream然后交付，如果not recognized，那么转发。RP并非stream的endpoint，这意味着几乎只承担一个middle的作用。

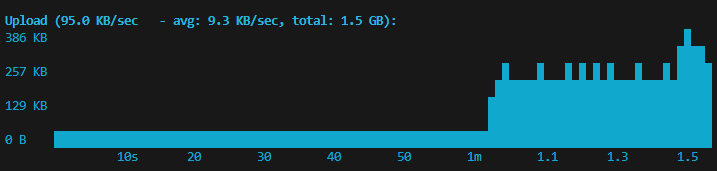

另一方面，从实际架设的隐藏服务来看，当Client发出一个下载请求并开启方波模式的时候，能看到HS的nyx中upload的流量呈现方波模式，并且此RP是随机选择的，这能够证明XON/XOFF的确到达了HS并直接限制了HS的发送速率。

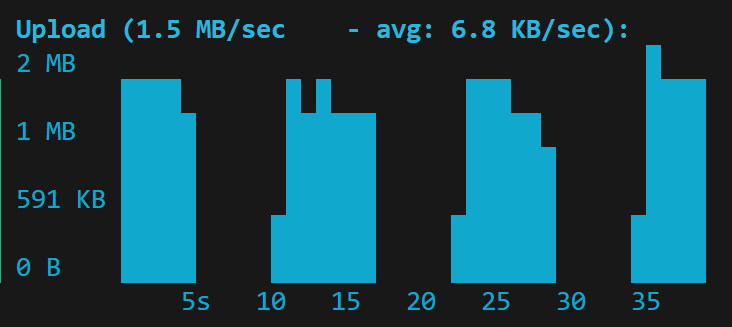

从下图可以看到，此时RP是随机选择的公网Relay，仍然能够达到方波的效果。

实验设计与问题

Conflux机制

从nyx的监控和协议来看，HS端是不存在Conflux机制的，HS到RP只有条电路，自然就只有1个Guard，因此直接监控即可，不需要合并流量进行分析。

编码设计

暂时有一个用摩斯编码设计一个单词的想法，但是没想好。

平均的速率非常稳定，在XON携带的建议值的0.75-0.78之间，间歇性有峰值接近携带建议值，但是建议值越大越不容易接近，并且一定不会超过建议值。

问题

目前没有Guard节点，节点需要比较长的时间才能转变成Guard。
