2026.03.05 组会-改动Tor客户端源码固定RP节点

核心问题：

通过仅少量改动Tor客户端源码实现固定RP节点到受控制的Exit节点

问题背景

在 v3 Hidden Service 连接过程中，客户端需要：

  1. 随机选择一个RP节点，然后构建到 RP 的电路
  2. 连接一个Introduce节点，然后通过Introduce节点通知隐藏服务RP节点的信息
  3. 隐藏服务建立连接RP的三跳电路
  4. 通过 RP 汇合形成 6-hop 通路

从逻辑上看，RP 是一个特殊角色节点，但从源码实现上看，RP 并不是一种特殊类型，而是普通的Relay被选中赋予逻辑上的“会合点”含义。

可行性分析

  1. RP可固定：在Proposal的逻辑实现当中，客户端随机选择了一个Relay节点作为RP，然后形成了一个到RP的三跳电路，从结构上来说，可以把RP看作是这条Internal电路的“Exit”节点，这意味着可以通过固定普通Exit节点的方式来固定RP节点。
  2. 流量可控：RP节点同时也可以视为隐藏服务连接到RP节点的三跳电路的Exit节点，因此可以通过控制固定的RP的outbuf的方式来进行流量控制从而暴露隐藏服务。
  3. 更严格的猜想：由于Stream级别的流控要到端点才进行处理，所以可能甚至RP是没有对XON进行处理的，会直接转发到隐藏服务进行处理，那么很有可能甚至不需要对RP进行固定和处理，任意的RP直接通过客户端拉流量的方式就能直接暴露隐藏服务。

源码分析

客户端建立 RP 电路的调用链如下：

1
2
3
4
5
6
7
8
9
circuit_launch_by_extend_info()
        ↓
circuit_establish_circuit()
        ↓
onion_pick_cpath_exit()
        ↓
choose_good_exit_server()
        ↓
router_choose_random_node()

而客户端建立不同电路的调用链如下：

1
2
3
4
5
6
7
8
9
circuit_launch_by_extend_info()
        ↓
circuit_establish_circuit()
        ↓
onion_pick_cpath_exit()
        ↓
choose_good_exit_server()
        ↓
choose_good_exit_server_general()

因此可以进行小改动，让client像选普通exit节点一样选择RP节点，从而实现在torrc里面直接配置就能固定RP。

源码改动

如何选择节点的关键部分在下面的函数中：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
//circuitbuild.c

/** Return a pointer to a suitable router to be the exit node for the
 * circuit of purpose <b>purpose</b> that we're about to build (or NULL
 * if no router is suitable).
 *
 * For general-purpose circuits, pass it off to
 * choose_good_exit_server_general()
 *
 * For client-side rendezvous circuits, choose a random node, weighted
 * toward the preferences in 'options'.
 */
static const node_t *
choose_good_exit_server(origin_circuit_t *circ,
                        router_crn_flags_t flags, int is_internal)
{
  const or_options_t *options = get_options();
  flags |= CRN_NEED_DESC;

  switch (TO_CIRCUIT(circ)->purpose) {
    case CIRCUIT_PURPOSE_C_HSDIR_GET:
    case CIRCUIT_PURPOSE_S_HSDIR_POST:
    case CIRCUIT_PURPOSE_HS_VANGUARDS:
    case CIRCUIT_PURPOSE_C_ESTABLISH_REND:
      /* For these three, we want to pick the exit like a middle hop,
       * since it should be random. */
      tor_assert_nonfatal(is_internal);
      /* We want to avoid picking certain nodes for HS purposes. */
      flags |= CRN_FOR_HS;
      FALLTHROUGH;
    case CIRCUIT_PURPOSE_CONFLUX_UNLINKED:
    case CIRCUIT_PURPOSE_C_GENERAL:
      if (is_internal) /* pick it like a middle hop */
        return router_choose_random_node(NULL, options->ExcludeNodes, flags);
      else
        return choose_good_exit_server_general(flags);
  }
  log_warn(LD_BUG,"Unhandled purpose %d", TO_CIRCUIT(circ)->purpose);
  tor_fragile_assert();
  return NULL;
}

选择RP节点的时候会调用router_choose_random_node函数，而正常选择exit节点的时候会调用choose_good_exit_server_general函数。因此可以在这个分支做改动，在发现是CIRCUIT_PROPOSE_C_REND的时候直接调用新加入的choose_good_exit_server_from_routerset函数来选择一个符合torrc配置中正常exit节点的节点作为RP。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
// circuitbuild.c

/** Return a pointer to a suitable router to be the exit node for the
 * circuit of purpose <b>purpose</b> that we're about to build (or NULL
 * if no router is suitable).
 *
 * For general-purpose circuits, pass it off to
 * choose_good_exit_server_general()
 *
 * For client-side rendezvous circuits, choose a random node, weighted
 * toward the preferences in 'options'.
 */
static const node_t *
choose_good_exit_server(origin_circuit_t *circ,
                        router_crn_flags_t flags, int is_internal)
{
  const or_options_t *options = get_options();
  flags |= CRN_NEED_DESC;

  switch (TO_CIRCUIT(circ)->purpose) {
    case CIRCUIT_PURPOSE_C_HSDIR_GET:
    case CIRCUIT_PURPOSE_S_HSDIR_POST:
    case CIRCUIT_PURPOSE_HS_VANGUARDS:
    case CIRCUIT_PURPOSE_C_ESTABLISH_REND:
      /* For these three, we want to pick the exit like a middle hop,
       * since it should be random. */
      tor_assert_nonfatal(is_internal);
      /* We want to avoid picking certain nodes for HS purposes. */
      flags |= CRN_FOR_HS;
      /* BORING TEST */
      /* If ExitNodes is configured, force the client rendezvous point to be
       * chosen from that set as well, including IP-based routerset entries. */
      if (TO_CIRCUIT(circ)->purpose == CIRCUIT_PURPOSE_C_ESTABLISH_REND &&
          options->ExitNodes) {
        const node_t *node = choose_good_exit_server_from_routerset(
            options->ExitNodes, options->ExcludeExitNodesUnion_, flags);
        if (!node) {
          log_warn(LD_CIRC,
                   "No nodes in ExitNodes%s seem usable as a rendezvous "
                   "point: can't choose a rendezvous point.",
                   options->ExcludeExitNodesUnion_ ?
                   ", except possibly those excluded by your configuration, " :
                   "");
        }
        return node;
      }
      /* BORING TEST */
      FALLTHROUGH;
    case CIRCUIT_PURPOSE_CONFLUX_UNLINKED:
    case CIRCUIT_PURPOSE_C_GENERAL:
      if (is_internal) /* pick it like a middle hop */
        return router_choose_random_node(NULL, options->ExcludeNodes, flags);
      else
        return choose_good_exit_server_general(flags);
  }
  log_warn(LD_BUG,"Unhandled purpose %d", TO_CIRCUIT(circ)->purpose);
  tor_fragile_assert();
  return NULL;
}

新加入的choose_good_exit_server_from_routerset函数如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
// circuitbuild.c

/* Pick a node from a configured routerset, but still enforce the normal
 * suitability checks for this circuit position and purpose. */
static const node_t *
choose_good_exit_server_from_routerset(const routerset_t *pick_from,
                                       const routerset_t *exclude_set,
                                       router_crn_flags_t flags)
{
  const node_t *node = NULL;
  smartlist_t *live_nodes = smartlist_new();

  tor_assert(pick_from);

  routerset_get_all_nodes(live_nodes, pick_from, exclude_set, 1);
  SMARTLIST_FOREACH_BEGIN(live_nodes, const node_t *, live_node) {
    if (!router_can_choose_node(live_node, flags)) {
      SMARTLIST_DEL_CURRENT(live_nodes, live_node);
    }
  } SMARTLIST_FOREACH_END(live_node);

  if (smartlist_len(live_nodes) <= MAX_SANE_RESTRICTED_NODES) {
    node = smartlist_choose(live_nodes);
  } else {
    node = node_sl_choose_by_bandwidth(live_nodes, NO_WEIGHTING);
  }

  smartlist_free(live_nodes);
  return node;
}

这个函数从限定的pick_from集中选择仍然活跃的节点，也就是配置了指定exit节点的时候选择指定节点，未指定时随机选择符合要求的exit节点。

除此之外，需要进行修正让RP的排除检查与普通出口一致：

1
2
3
4
5
6
7
8
9
10
// circuitbuild.c warn_if_last_router_excluded()

    case CIRCUIT_PURPOSE_C_REND_JOINED:
      /* BORING TEST */
      /* Rendezvous points now follow the same exit exclusion set as normal
       * exits so diagnostics match the enforced selection behavior. */
      description = "chosen rendezvous point";
      rs = options->ExcludeExitNodesUnion_;
      /* BORING TEST */
      break;

这样可以防止节点选择后的检查报警。

另一方面，由于HS_client_rend电路有时可能不会重新完整建路，而是复用一条已经打开的internall circuit。一旦发生这种复用，原来那条电路会被继承从而绕过上面改动的RP选择逻辑，因此需要禁用已有的internal circuit。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
// circuituse.c

/**
 * Return true for the set of conditions for which it is OK to use
 * a cannibalized circuit.
 *
 * Don't cannibalize for onehops, or certain purposes.
 */
static int
circuit_should_cannibalize_to_build(uint8_t purpose_to_build,
                                    int has_extend_info,
                                    int onehop_tunnel)
{
  const or_options_t *options = get_options();

  /* Do not try to cannibalize if this is a one hop circuit. */
  if (onehop_tunnel) {
    return 0;
  }

  /* Don't try to cannibalize for general purpose circuits that do not
   * specify a custom exit. */
  if (purpose_to_build == CIRCUIT_PURPOSE_C_GENERAL && !has_extend_info) {
    return 0;
  }

  /* Don't cannibalize for testing circuits. We want to see if they
   * complete normally. Also don't cannibalize for vanguard-purpose
   * circuits, since those are specially pre-built for later
   * cannibalization by the actual specific circuit types that need
   * vanguards.
   */
  if (purpose_to_build == CIRCUIT_PURPOSE_TESTING ||
      purpose_to_build == CIRCUIT_PURPOSE_HS_VANGUARDS) {
    return 0;
  }

  /* The server-side intro circ is not cannibalized because it only
   * needs a 3 hop circuit. It is also long-lived, so it is more
   * important that it have lower latency than get built fast.
   */
  if (purpose_to_build == CIRCUIT_PURPOSE_S_ESTABLISH_INTRO) {
    return 0;
  }

  /* Do not cannibalize for conflux circuits */
  if (purpose_to_build == CIRCUIT_PURPOSE_CONFLUX_UNLINKED) {
    return 0;
  }

  /* BORING TEST */
  /* A client rendezvous circuit with ExitNodes configured must be built with
   * a freshly chosen final hop, otherwise cannibalizing an existing internal
   * circuit would keep its random endpoint and bypass the forced RP choice. */
  if (purpose_to_build == CIRCUIT_PURPOSE_C_ESTABLISH_REND &&
      options->ExitNodes) {
    return 0;
  }
  /* BORING TEST */

  return 1;
}

实验结果

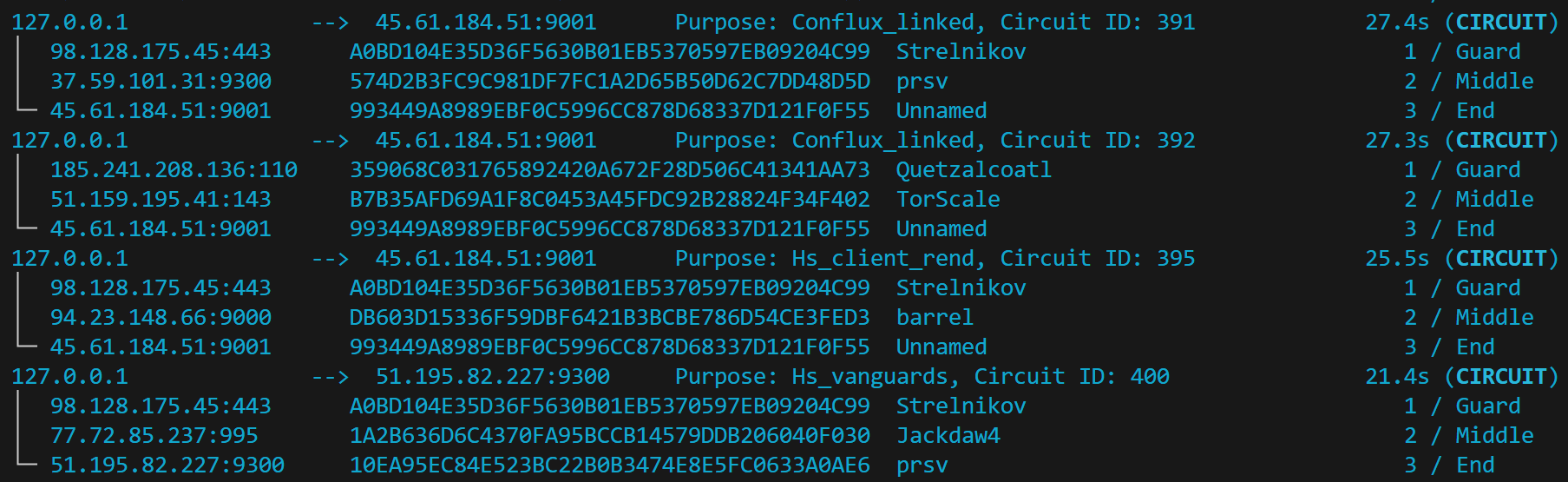

代码改动之后随意访问一个.onion服务，可以看到6-hop电路的建立，并且选取的RP节点和普通exit节点一样：

image-20260304175957952
